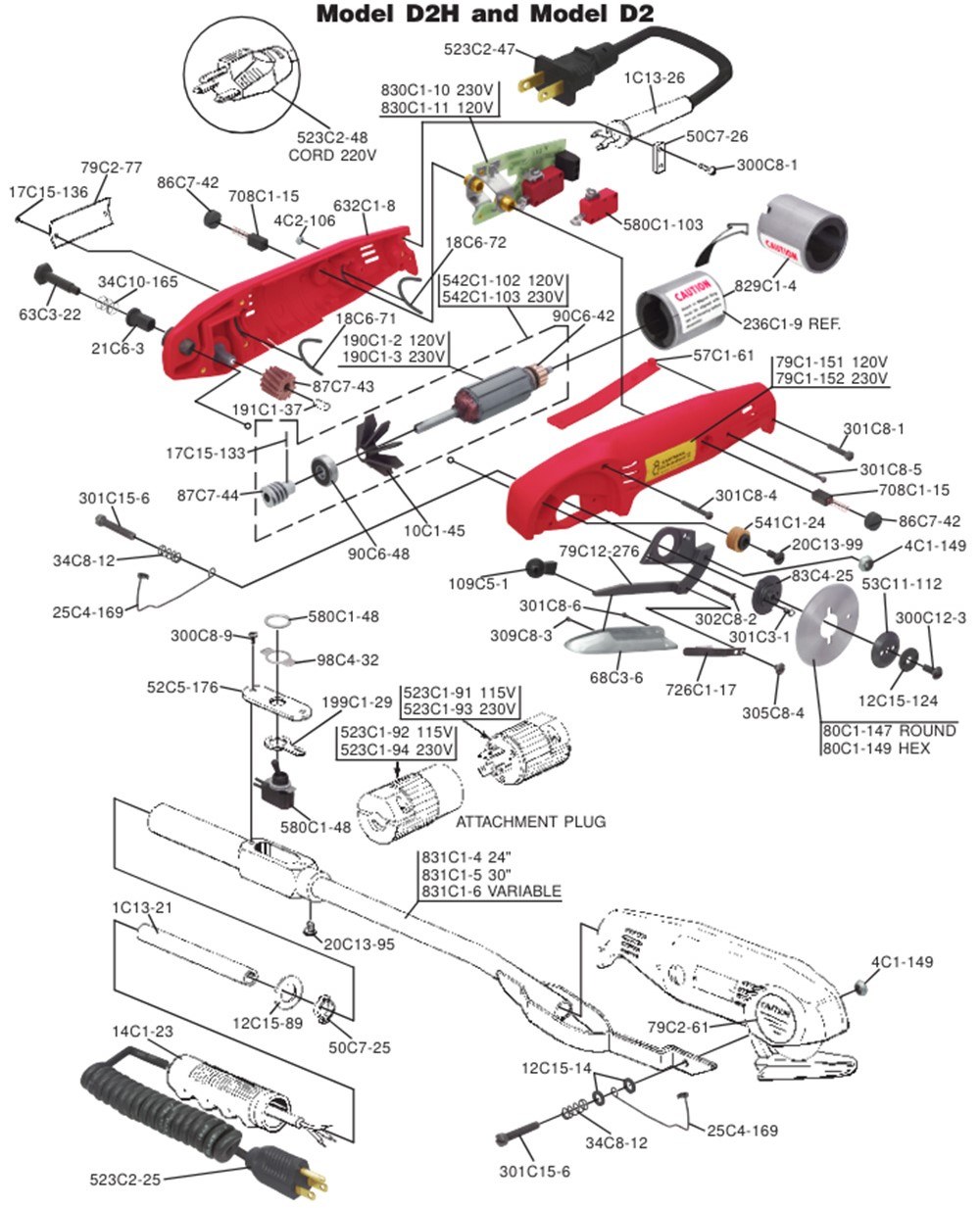

Every part available for Eastman Chickadee models D2 and D2H is shown below, along with each part’s corrosponding style number. If we carry the part, you’ll be able to click the style number to open the product detail page in a new browser tab and add the item to your cart or list. If you are unable to find what you are looking for, please contact our sales department.

Close Parts List

120V Cord Assembly Hex Nut Brush Cap Brush with Spring Hex Nut Housing with Switch Lever 120V Circuit Board 230V Circuit Board Switch for Model D2 Toggle Switch for Model D2H Sharpener Button Sharpener Button Spring Sharpener Button Bushing Magnet Assembly Armature Assembly Armature Assembly Front Half O-Ring Back Half O-Ring Knife Gear 120V Armature 230V Armature Worm Gear Armature Pin Front Bearing Rear Bearing Fillister Head Screw Fillister Head Screw Brush Cap Brush with Spring Emery Wheel Hex Nut Pressure Foot Gear Retaining Plate Shear Tip Ball Fillister Head Screw Flat Head Screw Binding Head Screw Socket Head Screw Shear Plate with Carbide Blade Round Blade Hexagonal Blade Knife Flange Washer Knife Cover Flange Round Head Screw Fillister Head Screw Spring Guide Washer Spring Fillister Head Screw 120V Cord Round Head Screw Cord Clamp, Model D2 Cord Clamp, Model D2H Cord Sleeve 220V Cord Assembly Lever Switch Plate, 120 Plate, 230 Fillister Head Screw Fillister Head Screw Pan Head Screw Wicking Felt Fan with Bearing Round Head Screw Base Switch Clip Switch Lug Caution Plate Plastic Handle Grip Handle Washer Handle Sleeve Pan Head Screw Plug, 120V Male Plug, 120V Female 24-inch Handle 30-inch Handle 40-inch Handle Knife Guard Name Plate Pin Label

Close Parts List

Eastman Chickadee Model D2H Long-Handled Rotary Shear

Item Number:
14505
Primary Style No:
110V-1PH
Alternate Styles:
110V-1PH
Brand:
Eastman
Price:
$695.00/EA
Qty Available: 1 Qty Available: 1

Description

Interactive Parts Lists



The Long Handled Chickadee has all the features of the D2 model, in addition to a long handle and a remote power switch. The handle allows the operator to reach across the table with ease, thereby improving cutting quality.

The Eastman Chickadee II features a totally enclosed sharpener for faster and safer sharpening, easily accessible motor brushes for quick and easy servicing and an integrated power switch for rapid response and fatigue free operation. Four different base plates and cutting tips can be selected depending on your specific use:

  • Stabilizer Shoe: The standard foot attachment, a utility feature that lends itself well to all cutting and slitting operations.
  • Ball Tip: Best when slitting tubular knits or other loosely woven materials.
  • Broad Stabilizer: For those applications where slightly more stability is necessary; useful for eliminating distortion between plies.
  • Baseplate: A small baseplate fitted with needle rollers to create the lightest free standing rotary shear available. Provides the greatest degree of accuracy from top to bottom ply.
  • Specifications:
    • 0.10hp motor
    • Unit weighs 1lb. 14oz.
    • Blade size is 2-¼”
    • ½” cutting capacity

The Chickadee II has a cutting capacity 25% greater than competitive models. Powered by Eastman’s Permanent Field Motor, these shears have 40% more power than any other hand held knife its size. Designed for continuous use without motor burnout. This, combined with its streamlined, lightweight construction, helps eliminate operator fatigue. Equipped with a round blade for general use. Hexagon blade available separately for sheer or difficult cloth.

Specifications

Size:
2-1/4 Inch
